1. Introduction

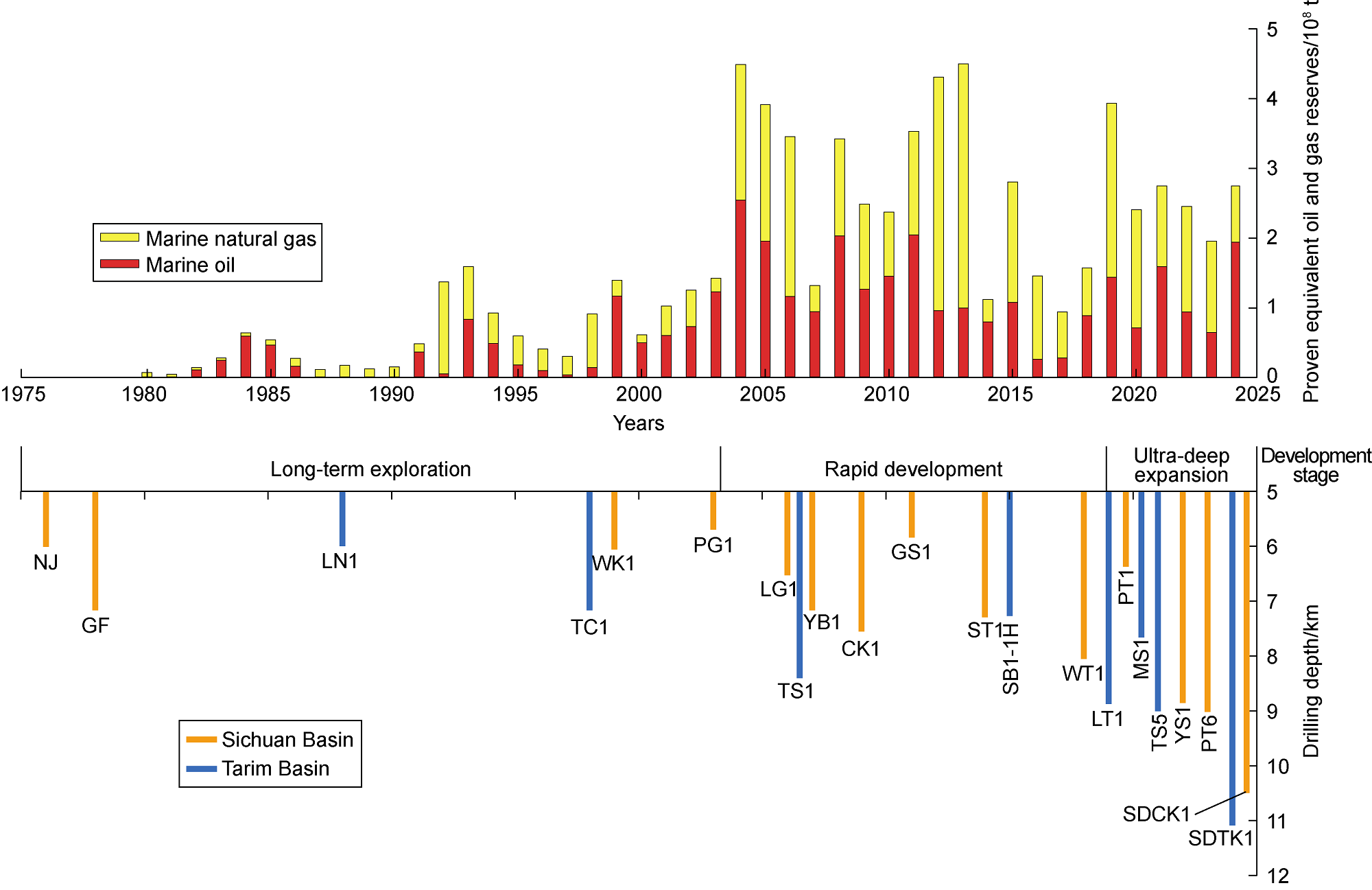

Fig. 1. The exploration progress of marine ultra-deep oil and gas in China and discovery wells in major oil and gas fields (Well PG1 in Puguang Gasfield, Well LG1 in Longgang Gasfield, Well YB1 in Yuanba Gasfield, Well GS1 in Anyue Gasfield, Well ST1 in Shuangyushi Gasfield, Well PT1 in Taihe gas area of the Sichuan Basin; Well SB1-1H in Shunbei Oilfield, Well MS1 in Fuman oil area of the Tarim Basin). |
2. The periodic breakup and assembly of supercontinents control the superimposed development of hydrocarbon "source-reservoir-seal" in marine ultra-deep petroleum systems in China
2.1. Two breakup-assembly cycles of supercontinents from the late Neoproterozoic to the Triassic

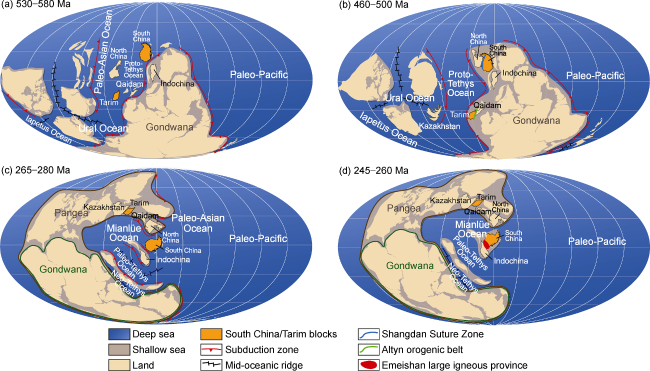

Fig. 2. The breakup and assembly of supercontinents from the late Ediacaran to the Triassic (modified from Reference [12]). (a) From the late Ediacaran to the early Cambrian (530-580 Ma), the South China and Tarim blocks were scattered in the Proto-Tethys Ocean and off the western side of the Gondwana supercontinent, not yet incorporated into the supercontinent. (b) From the late Cambrian to the middle Ordovician (460-500 Ma), the South China and Tarim blocks drifted southward and gradually accreted to the Gondwana supercontinent. Afterwards, the collision between the North China and the South China blocks formed the Shangdan Suture Zone, and the collision between the Tarim and the Qaidam blocks formed the Altyn orogenic belt. (c) During the middle Permian (265-280 Ma), the Tarim block drifted to the mid-latitudes of the Northern Hemisphere, and the South Tianshan Ocean subducted; the South China block drifted to the equatorial region, and the Mianlüe Ocean subducted. (d) From the late Permian to the early Triassic (245-260 Ma), the collision between the Tarim and the Kazakhstan blocks formed the Tianshan orogenic belt; the South China Block drifted to the low latitudes of the Northern Hemisphere, and its southwestern margin obliquely collided with the Indochina Block, triggering the Emeishan large igneous province eruption event; the Mianlüe Ocean continued subducting in the north, after which the South China and North China blocks collided to form the Mianlüe Suture Zone. |

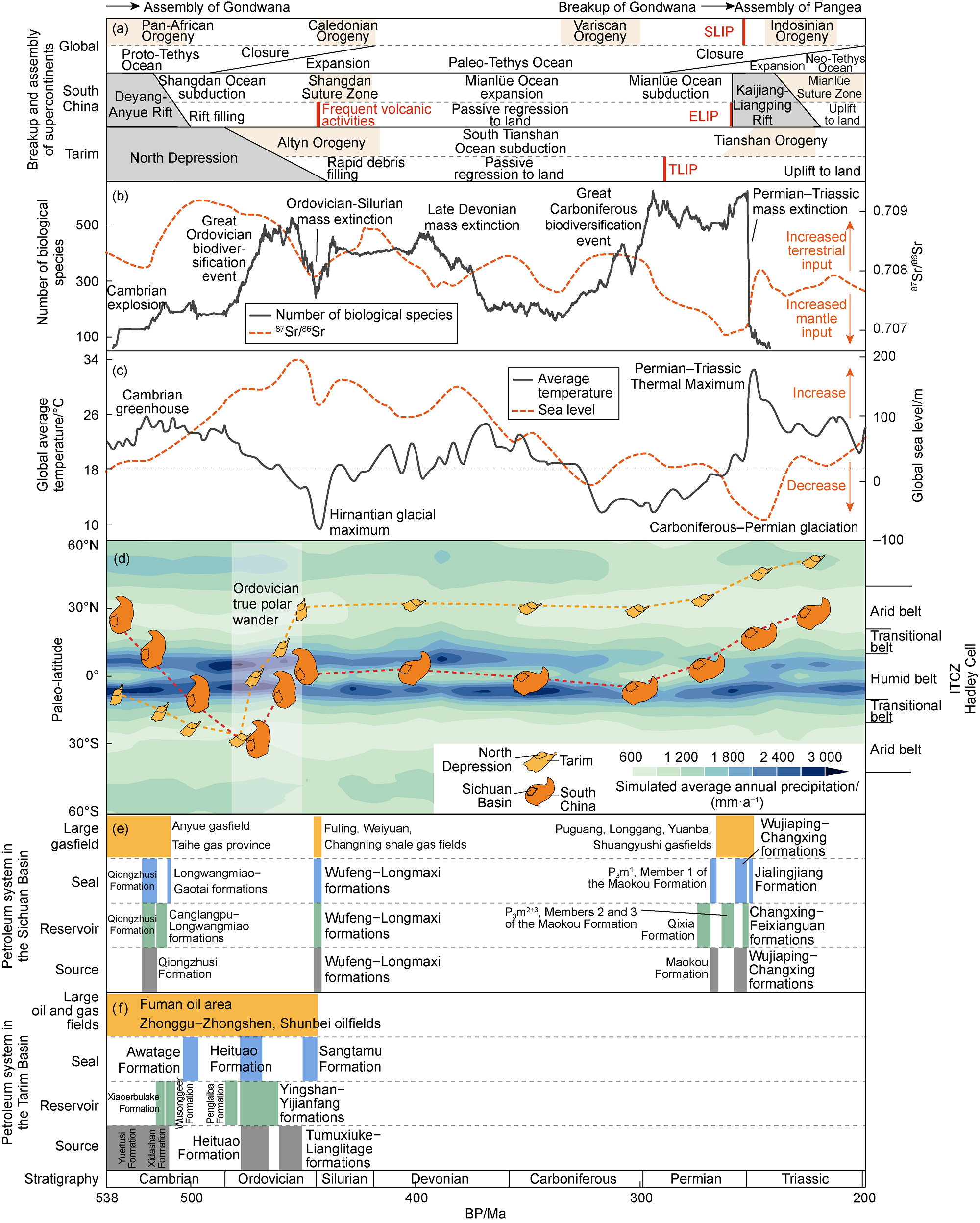

Fig. 3. Multi-spherical interactions from the Cambrian to the Triassic and the formation of marine ultra-deep petroleum systems in China. (a) The breakup and assembly of supercontinents and key global and regional geological events in the South China and Tarim blocks; (b) Changes in terrestrial and mantle influxes indicated by the global oceanic 87Sr/86Sr curve [13] and evolutionary curves of biological radiation and extinction events indicated by the fossil record [14]; (c) Global average temperature curve [15] and global sea level changes [16]; (d) Drift paths of the South China and Tarim blocks [12,17] and simulated annual precipitation at different latitudes [18]; (e) Important source-reservoir-seal sequences of marine ultra-deep petroleum systems and discovered major oil and gas fields in the Sichuan Basin; (f) Important source-reservoir-seal sequences of marine ultra-deep petroleum systems and discovered major oil and gas fields in the Tarim Basin. ELIP—Emeishan large igneous province; SLIP—Siberian large igneous province; TLIP—Tarim large igneous province. |
2.2. Formation of the Ediacaran-Ordovician petroleum system
2.3. Formation of the Permian-Triassic petroleum systems

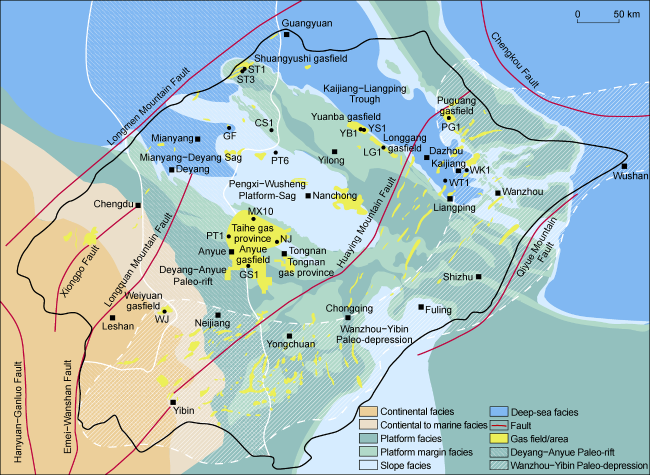

Fig. 4. Overlap map of the Late Permian paleogeographic environment, the Cambrian Terreneuvian−Series 2 Deyang− Anyue Rift, the Silurian Llandovery Wanzhou−Yibin Depression, and the distribution of present gasfields in the Sichuan Basin and its surrounding areas. (Major productive strata of typical large gasfields: the Triassic Feixianguan Formation in Puguang Gasfield, the Permian Changxing Formation and the Triassic Feixianguan Formation in Longgang Gasfield, the Permian Maokou and Changxing formations in Yuanba gasfield, the Ediacaran Dengying Formation and the Cambrian Longwangmiao Formation in Anyue Gasfield, the Permian Qixia and Maokou formations in Shuangyushi Gasfield, the Ediacaran Dengying Formation in Taihe gas province, the Ediacaran Dengying Formation in Weiyuan Gasfield. The late Permian paleogeographic environment and the distribution of present gasfields are modified from Reference [43]; the location of the Cambrian Terreneuvian−Series 2 Deyang−Anyue paleo-Rift is modified from Reference [44]; the location of the Silurian Llandovery Wanzhou−Yibin paleo-Depression is modified from Reference [32]). |
3. Regional tectonic movements control the source−reservoir−seal matching and the parent composition of organic matter in marine ultra-deep petroleum systems
3.1. Source-reservoir-seal matching in marine ultra-deep petroleum system

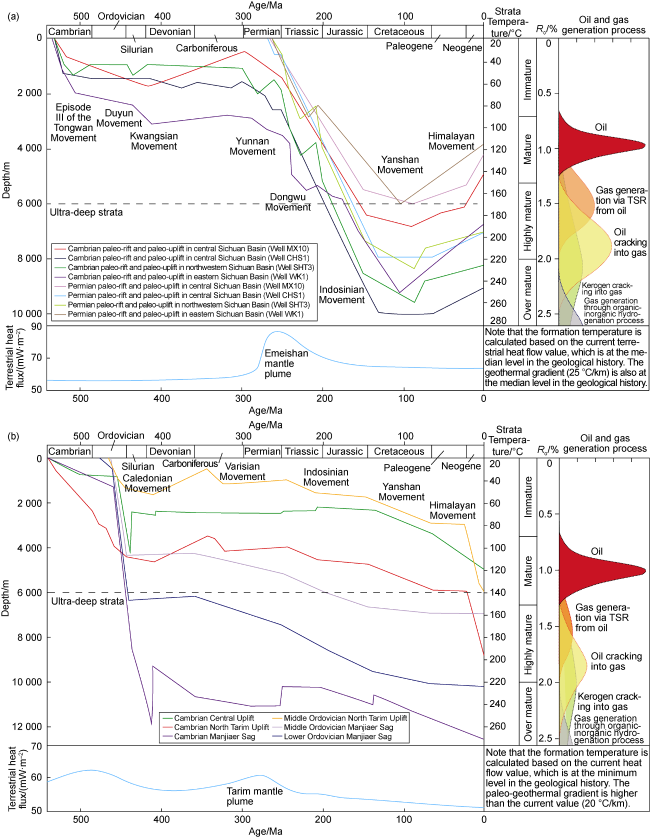

Fig. 5. Burial histories of different tectonic regions in the Sichuan Basin and the Tarim Basin and hydrocarbon generation processes from source rocks. (a) Sichuan Basin; (b) Tarim Basin, typical well TD2 in the Central Uplift, typical well LT1 in the North Tarim Uplift, and typical well MD1 in the Manjiaer Sag. The heat flow curves are after Reference [50], and the oil and gas generation models are modified from Reference [6]. |
3.2. Composition of the organic matter of marine ultra-deep hydrocarbon source rocks
4. Temperature-pressure and fault conduit systems control the marine ultra-deep petroleum generation and accumulation
4.1. Hydrocarbon generation process of marine ultra-deep source rocks
4.2. Marine ultra-deep petroleum accumulation and adjustment

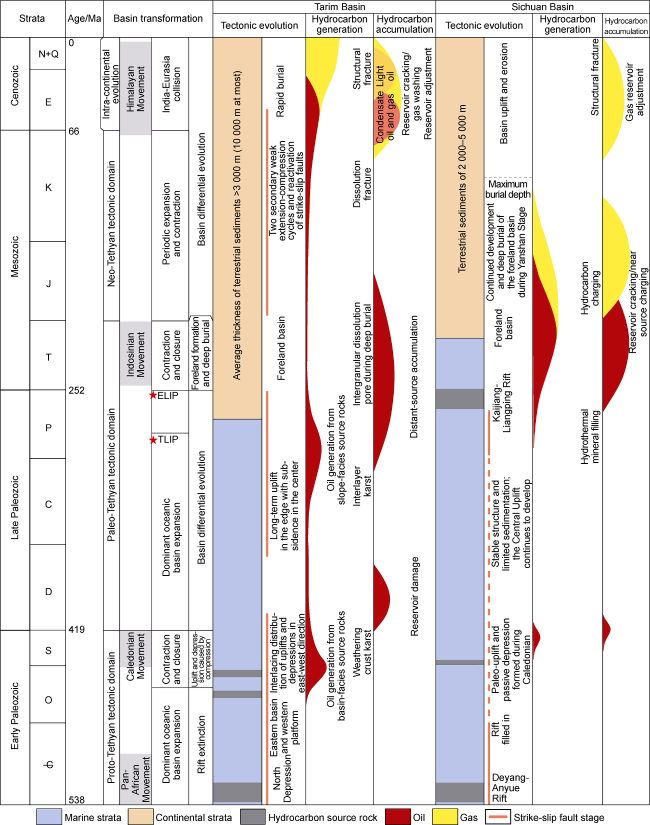

Fig. 7. Tectonic evolution of and hydrocarbon accumulation in marine ultra-deep formations in China. |
